A Placa Mãe Gigabyte GA-945GCM-S2C, exerce perfeitamente sua função conectando todos os componentes do seu computador. A placa é vendida como KIT e acompanha:
*Produto SEMI-NOVO TESTADO e RECERTIFICADO como solução para suas necessidades. Acompanha Nota Fiscal (NF) e Garantia de 3 meses.
Características:
| Marca | gIGABYTE |
| Linha | GA |
| Modelo | GA-945GCM-S2C |
| Versão | 1.0 |
| Plataforma | Intel |
| Slot de Expansão | 1 PCI Express c 16 slot, PCI Express x 4 slot, 2 PCI slots |
| Tipo de memória RAM | DDR2 |
| Capacidade máxima suportada da memória RAM | 4 GB |
| Socket | LGA775 |
| Chipset | Realtek 8110SC Gigabit Ethernet controller |

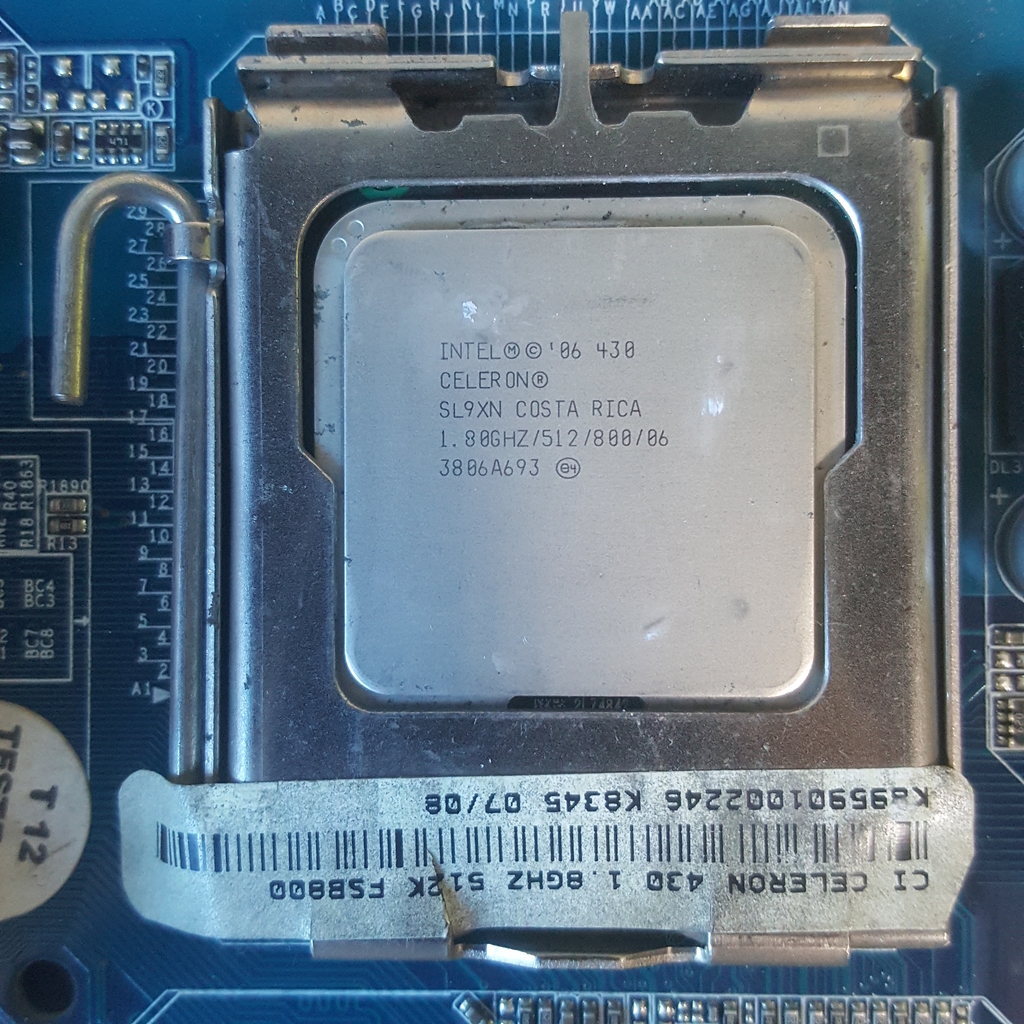

| CPU | Supports Intel Core 2 Extreme qual-core/ Core 2 Duo/ Pentium D/ Pentium 4/ Celeron D processors Supports 1066/800/533MHz FSB |
| Aplicações | Desktop,cpu,PC |
+especificações
Chipset
Northbridge: Intel® 945GC Express Chipset
Southbridge: Intel® ICH7
Realtek 8110SC Gigabit Ethernet controller
Realtek ALC888 audio codec
Memória
2 DDR II DIMM memory slots (supports up to 4GB memory)
Supports 1.8V DDR II DIMM
Supports dual channel DDR II 667/533 DIMM
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
Slots de Expansão
1 PCI Express x 16 slot
1 PCI Express x 4 slot
2 PCI slots
Conectores Internos I/O
1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
1 IDE connector
4 SATA 3Gb/s connectors
1 CPU fan connector
1 system fan connector
1 front panel connector
1 front audio connector
1 CD In connector
1 SPDIF In/Out connector
2 USB 2.0/1.1 connectors for additional 4 ports by cables
1 COMB connector
1 Chassis Intrusion connector
1 power LED connector
Conectores Painel Traseiro
1 PS/2 keyboard port
1 PS/2 mouse port
1 parallel port
1 serial port
1 VGA port
4 USB 2.0/1.1 ports
1 RJ-45 port
6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
Monitoramento H/W
System voltage detection
CPU temperature detection
CPU / System fan speed detection
CPU warning temperature
CPU / System fan failure warning
CPU smart fan control
BIOS
1 4 Mbit flash ROM
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Form Factor
Micro ATX
22.0 cm x 24.4 cm
Outras Características
Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune Center
Supports Xpress Install
Supports Xpress Recovery2
Supports Virtual Dual BIOS (Xpress BIOS Rescue)
